|Product Name:||1.5 MT Loading Capacity Rubber Crawler Track Undercarriage||Ladingscapaciteit:||Aangepast|
|Garantie:||12 maand||Na de verkoopdienst:||Videosteun|
1.5MT Rubber Crawler Track,
1.5MT Crawler Track Undercarriage,
Rubber Crawler Track Multi Application

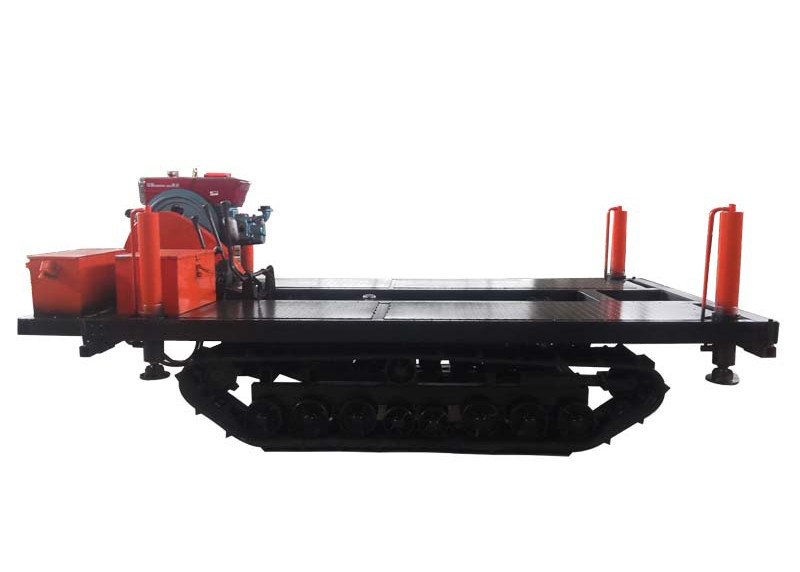

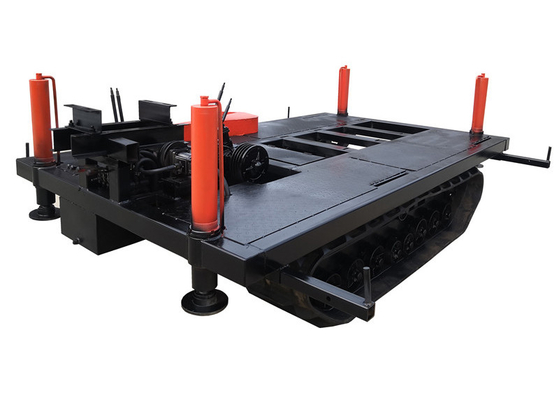

1.5 MT Loading Capacity Rubber Crawler Track Undercarriage
This Crawler Undercariage is specially designed and manufactured for small equipments.,use low speed and high torque motor, the driving force is bigger, the crawler track and the chain plate are fixed with screw for maintenance convenience,is equipped with mechanical brake,will not slip away in the rampway,Crossbeam flange connection, easily disassembly and assembly
Product Tech Details
|Type : 1.5T||Bucket size: 1500*1100*500 mm|
|Size: 2400*1100*1400mm||Crawler material: Rubber material|
|Track ground length: 1500mm||Loading &unloading method: Hydraulic dump|
|Motor size: 186||Gear type: drawbar|
|Gear: +3 forward gear+1 reverse gear||The height from the bottom of the bucket to the ground: 500 mm|
|Steering method: Clutch brake steering||Start method: Electric start|
|Standing slope angle: 35 degree||Crawler width: 720mm|
Operation advantage 1: good stability. Thanks to the crawler structure, the crawler chassis can have very good stability because of its large contact area with the ground when running in application, and can ensure that its running effect is very stable.
Operation advantage 2: fast operation. Although compared with the chassis of other structures, the crawler chassis is running at a lower speed, but from its specific performance, it can still reach a faster running speed, and can fully meet everyone's requirements in terms of running speed.
Operation advantage 3: lasting operation. In terms of the specific performance of the crawler chassis in the application, it can achieve lasting operation by virtue of its own structure and performance advantages.
To sum up, the crawler chassis shows the advantages of good stability, fast running speed and long running. With these advantages, it will inevitably show very good running effect.
Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly
Due to the different use methods and soil conditions, the working life of rubber track also varies greatly. Generally speaking, its average life is about 2000 hours. However, when working in rock or easily worn environment, the service life will be halved; On the contrary, the working life will be doubled in a better environment. When the user checks the track and chassis, don't forget to drive again to check the oil level and cleanliness. This part is easy to be ignored, and there is usually less oil left.
Product Working Attentions
(1) It is forbidden to turn sharply on the concrete ground or hard road, otherwise the track core will be worn and the belt body will be twisted.
(2) When crossing the ridge, it is necessary to move forward at a low speed at right angles to the ridge. When crossing the ridge with a height of more than 10 cm, it is necessary to use a springboard, otherwise the track may fall off or be damaged.
(3) It is forbidden to walk and turn sharply for a long time on the gravel road, otherwise the track will be accelerated, worn and cracked.
(4) Do not work on rotten fields, otherwise the track will slip and make the traveling mechanism accumulate mud and tangle grass, affecting the normal operation.
(5) If stones or foreign matters enter between the track and the underframe, stop the operation immediately and remove the stones or foreign matters.
(6) After working on the beach or in the field sprinkled with chemicals, the track shall be washed in time.
